Hatch mosquito net fit chart

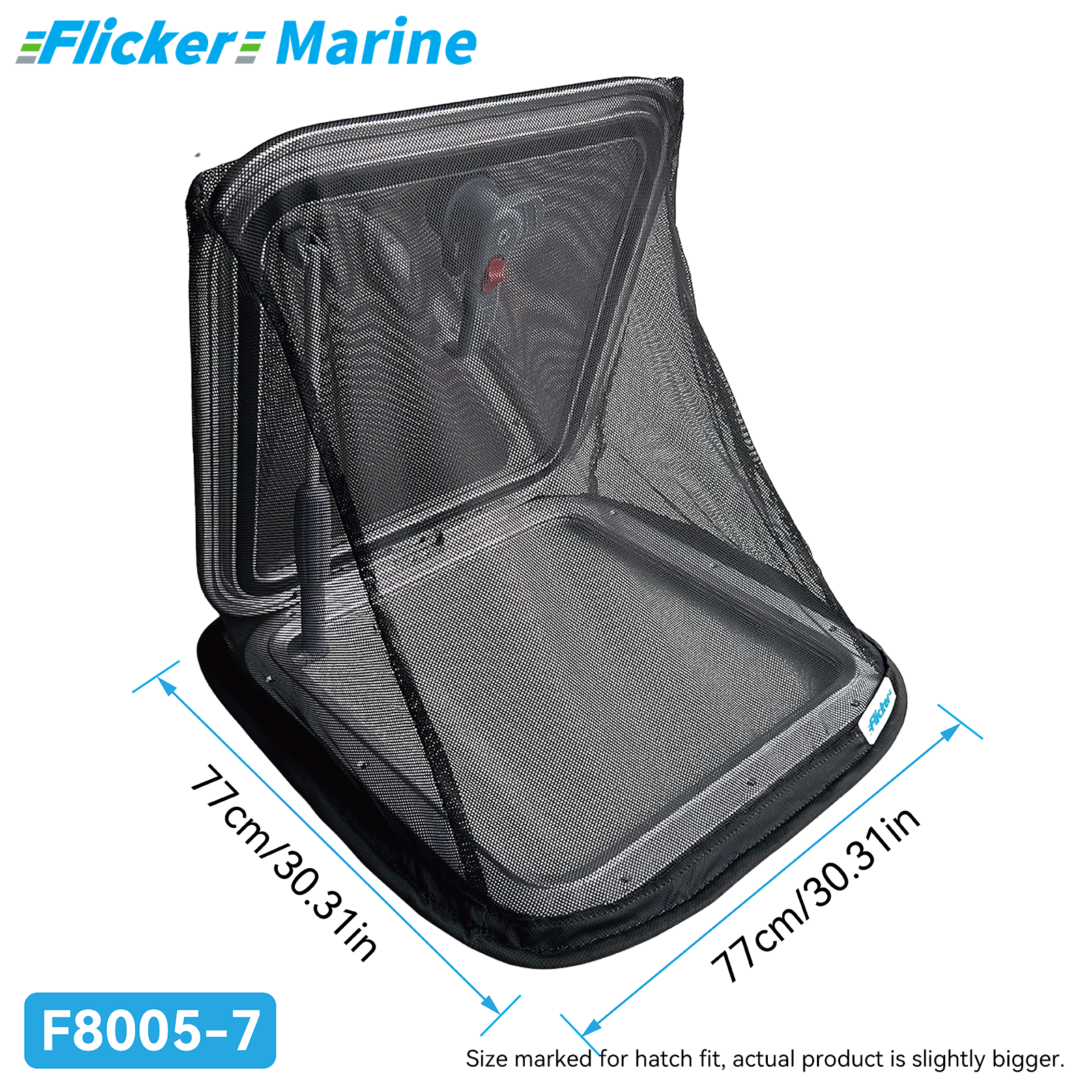

A polyester mesh net with a weighted edge, shown over an open boat hatch. The chart marks hatch-fit dimensions; the net itself is slightly larger.
| Reference in size diagram | Hatch width (cm / in) | Hatch length (cm / in) |
|---|---|---|
| F8005-1 | 28cm / 11in | 28cm / 11in |
| F8005-2 | 33cm / 13in | 33cm / 13in |
| F8005-3 | 45cm / 17.7in | 45cm / 17.7in |
| F8005-4 | 50cm / 19.7in | 50cm / 19.7in |
| F8005-5 | 58cm / 22.8in | 58cm / 22.8in |
| F8005-6 | 70cm / 27.6in | 70cm / 27.6in |
| F8005-7 | 77cm / 30.3in | 77cm / 30.3in |
| F8005-8 | 86cm / 33.9in | 86cm / 33.9in |
| F8005-9 | 28cm / 11in | 40cm / 15.7in |
| F8005-10 | 40cm / 15.7in | 52cm / 20.5in |
| F8005-11 | 45cm / 17.7in | 58cm / 22.8in |
The selector uses F1–F11 labels, while the size image uses F8005-1–F8005-11. Check your selected option against the illustrated dimensions; ask us to confirm if you are unsure.
Fitting checklist
Measure the hatch at the points shown in the diagram. Drape the net over the opened hatch and arrange the weighted edge around the base. Check the edge sits continuously around the opening.
For help choosing, email bg4epx@gmail.com with measurements, your selected code and photos of the fitting area.
- Marine-Specific：Designed for ship scenarios, suitable for cabins, decks, meeting mosquito prevention needs on board.
- Polyester Material：Made of polyester, tough, not easy to break, with good air permeability.
- Effective Mosquito Block：Fine mesh structure, effectively blocks mosquitoes, protecting comfort of personnel on board.
- Multiple Sizes：Offers various size specifications, flexible matching based on different area sizes of ships.
- Practical & Convenient：Easy to install, no excessive space occupation, suitable for various marine environments.

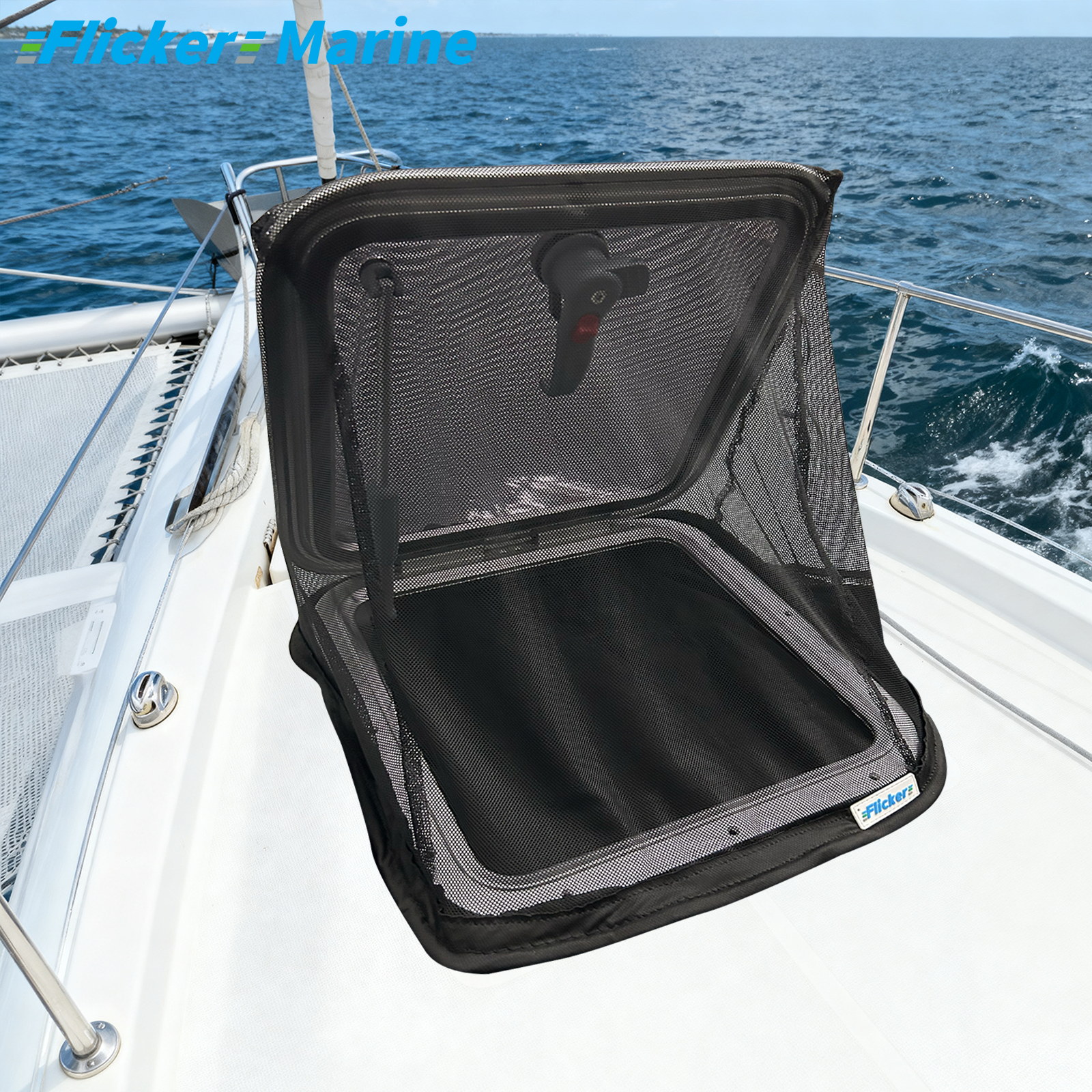

![Hatch insect screen fitted over an open sailboat deck hatch]()

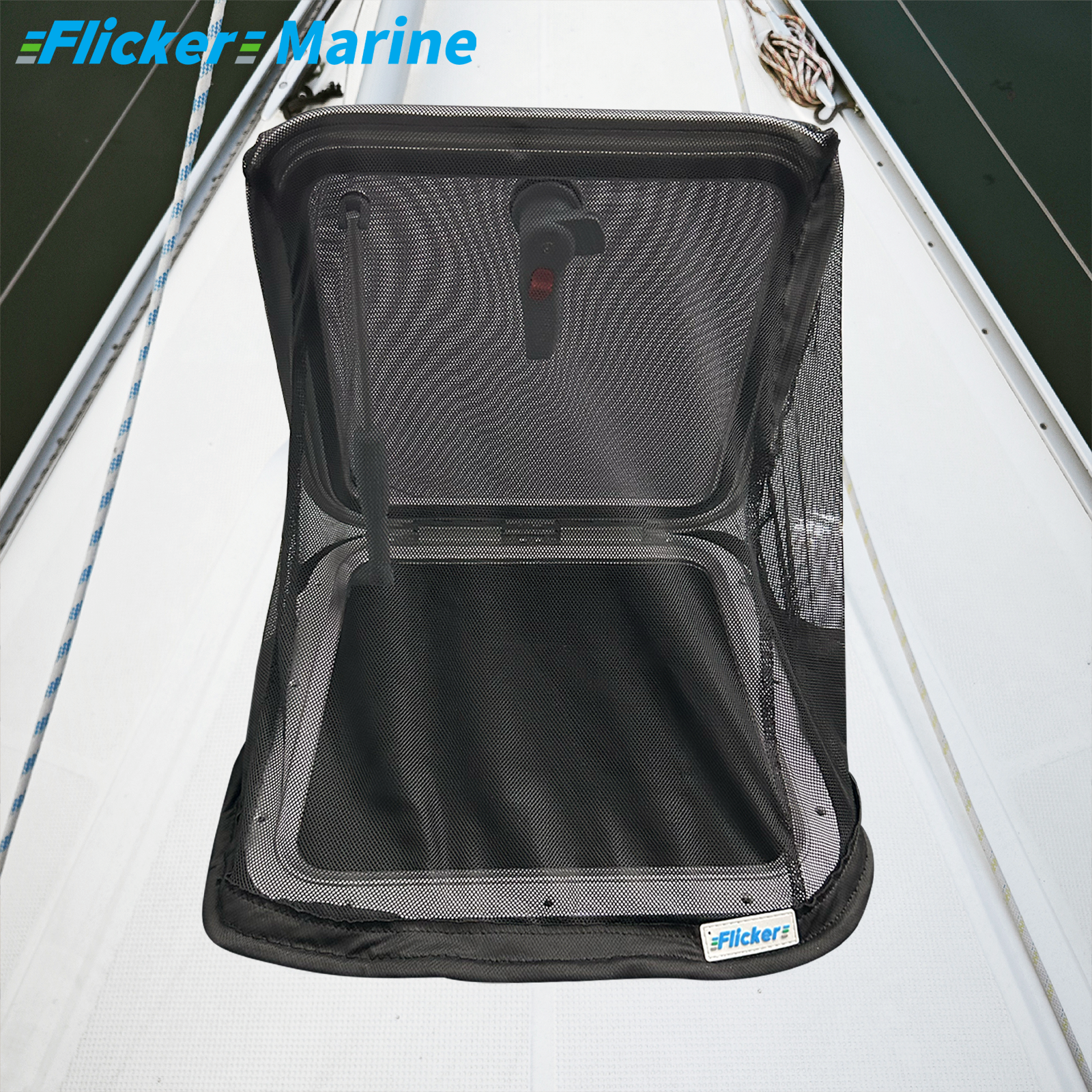

![Black mesh hatch screen installed on a boat deck]()

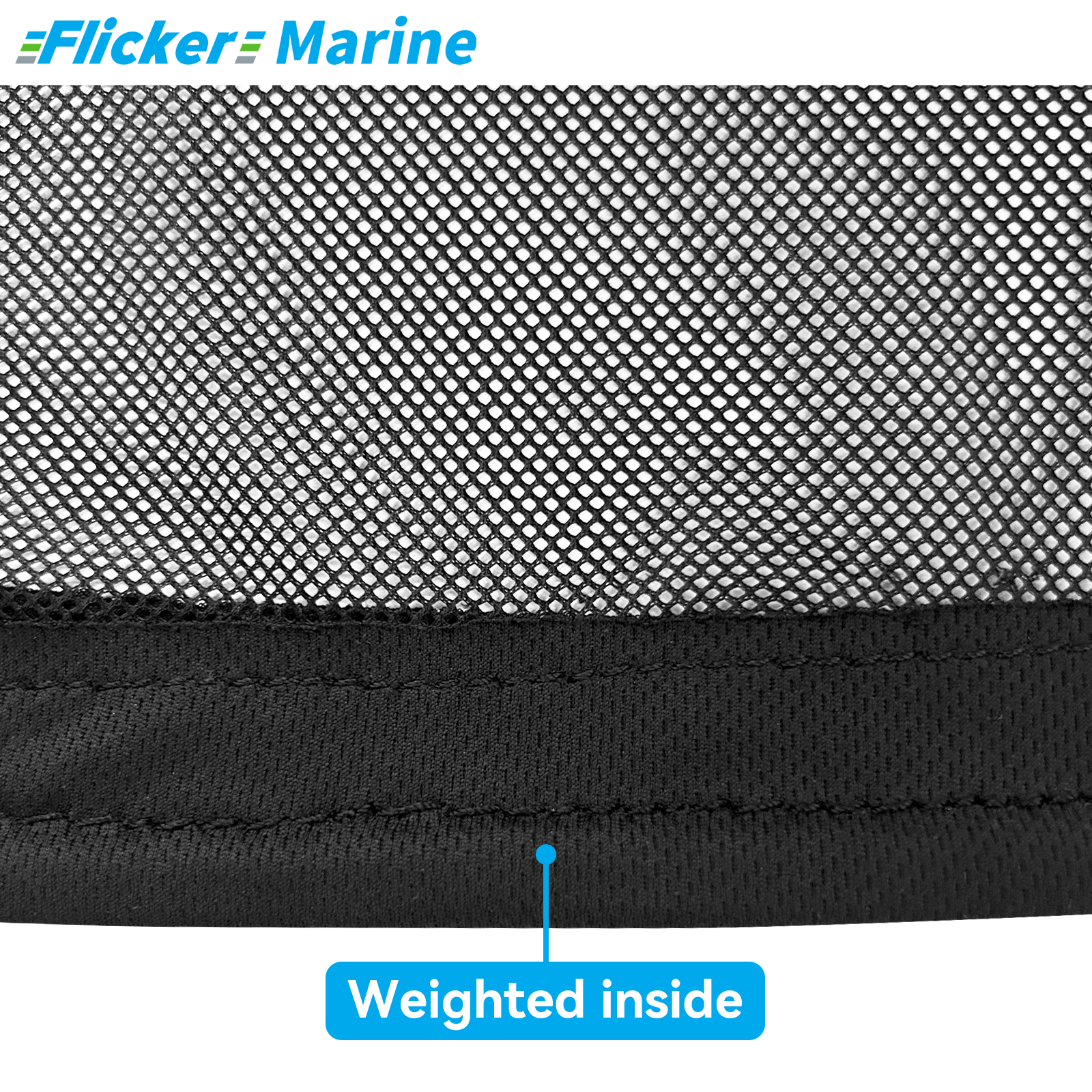

![Close-up of the mesh screen and weighted lower edge]()
![Side profile of the tent-shaped hatch insect screen]()

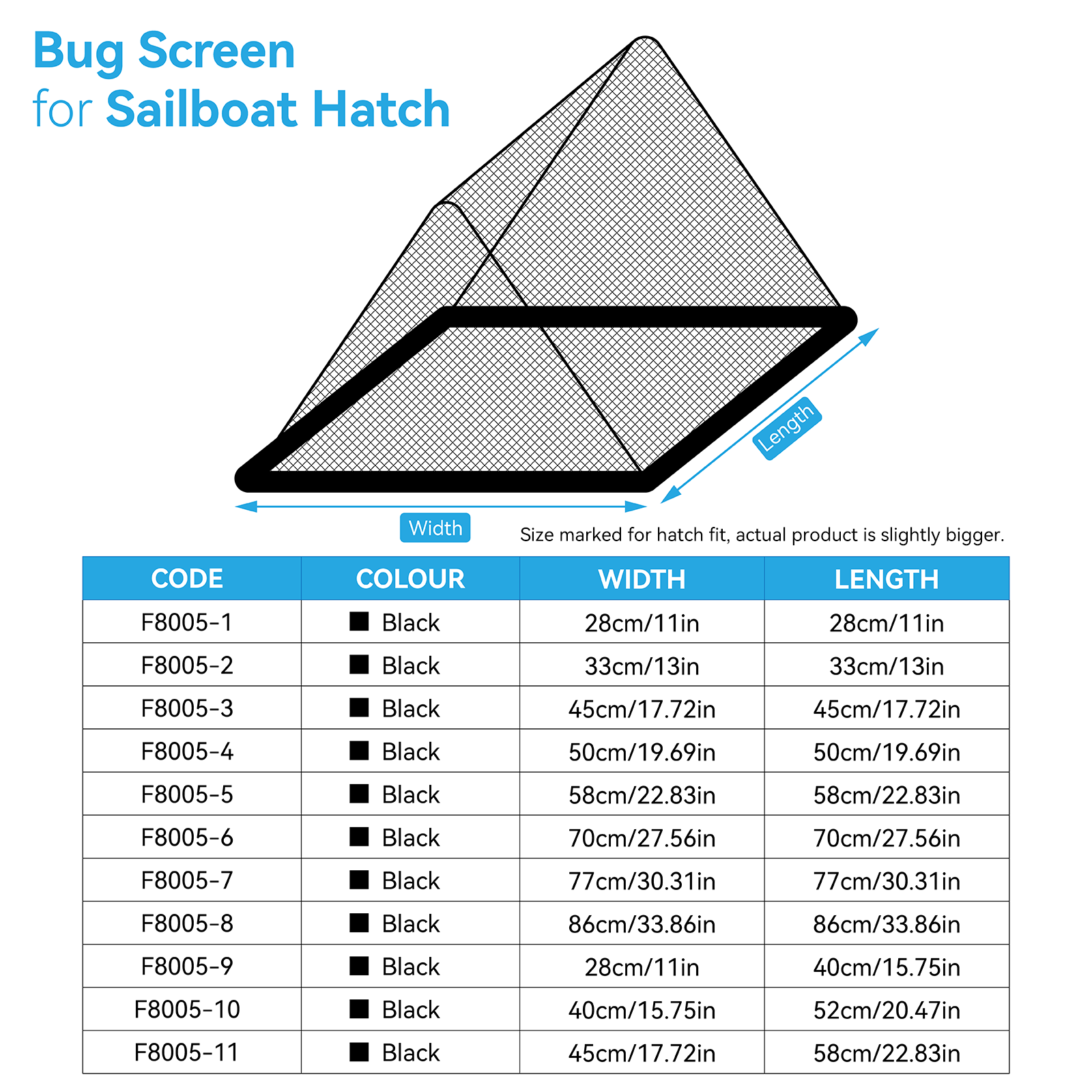

![Hatch screen measurement diagram and model width and length table]()
